CONTROL LINKAGE : BALL LINKS, CLEVISES, E-Z CONNECTORS
- Page 4 of 7 | 80 Total Products

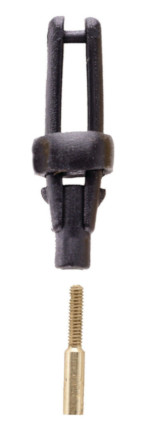

DUBRO Long Arm Micro Clevis, Black, (.047), 2/Pk
Description:
Our Long Arm Micro Clevis has a throat depth of 0.6" (15.2mm) which allows for a maximum control angle. The clevis has a perfect snap fit closure with a color matched silicone safety band to securely hold the arms. The .032" and .047" Long Arm Micro Clevis' come with the threaded coupler, while the .062" clevis will thread directly onto the 0.62" pushrod (coupler not included). Style your aircraft with these high quality color matching control fittings. (2/pkg.)
Our Price: $3.48
Dubro Heavy-Duty Threaded Ball Link 4-40
Description:
This high quality ball link offers smooth, secure operation with less slop.
It's adjustable so you can remove the link from the ball assembly simply by
losening a screw.
Includes: 1- adjustable swivel ball link (black plastic, self-threading for
4-40 rod, 1 1/4" in overall length)
1- burnished brass ball with a #4 hole in it
1- 2-56 x 1/4" roundhead screw for adjusting ball link
1- brass spacer
1- 4-40 locknut
1- 4-40 x 5/8" socket cap screw
Requires: 4-40 pushrod
3/32" allen wrench to secure socket cap screw
Our Price: $3.85
Dubro Rod Ends Solder 4-40 (2)
Description:
This is a pair of steel rod ends that accept .093 pushrod wire.
will be soldered to the rod end for secure connections.
This Package Includes:
(2) Steel rod ends (for .093 wire)
(2) 4-40x1/4" steel screws - these screws use a flathead screwdriver.
(4) 4-40 nuts
Our Price: $6.33
Dubro Kwik Link 4-40 (2)
Description:
These steel Kwik Links are suitable for any control linkage.
They allow easy removal for on-the-field adjustents.
They fit .093" diameter music wire with a 4-40 thread size and include spring keepers.
Our Price: $2.70
Dubro Solder Links 4-40 (2)
Description:
These are 4-40 Solder Kwik-Link Couplers w/spring keepers
FEATURES
Steel construction
INCLUDES
Two couplers
Two spring keepers
REQUIREMENTS
Soldering couplers on to push rods
SPECIFICATIONS
15/16" overall length
Our Price: $2.97

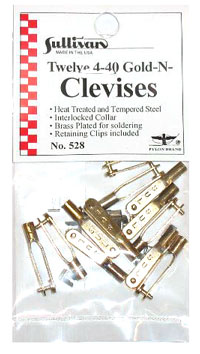

SULLIVAN 4-40 Gold-N-Clevises (12)
Description:
These tempered steel clevises are the strongest clevises made. They feature an interlocking collar, welded pin and an exclusive steel retaining clip to prevent accidental opening. They are brass or tin plated for easy soldering.
12 Per Package
Our Price: $14.83
Dubro Threaded Coupler 4-40 (2)
Description:
This is a Threaded Coupler for 4-40 size rods by Dubro.
FEATURES
Polished steel construction.
INCLUDES
Two steel threaded couplers.
SPECIFICATIONS
Length: 36.5mm (1.438")
Diameter: 3.5mm (.138")
Length of thread: 18.5mm (.731")
Thread size: 4-40
COMMENTS
This coupler will join two 4-40 rods, with a male connection on one end and a female on the other.
Our Price: $3.03
Dubro Swivel Ball Link 2-56 w/Hardware Black
Description:
This is a 2-56 Swivel Ball Link Set with Hardware
FEATURES
Brass, plastic, & steel construction
INCLUDES
One swivel ball links w/2-56 self-threading shank (.997" long)
One 2-56x1/2" socket head cap screws (black)
One 2-56 nut (Silver)
One beveled spacer .084x.186x.081 (ID x OD x thickness) (brass)
REQUIREMENTS
5/64" allen wrench for socket head cap screws
3/16" wrench for the nuts
Our Price: $3.03
Dubro Swivel Ball Link 2mm w/Hardware
Description:
This high quality ball link offers smooth, secure operation with less slop. You'd want to use this on any control surface where accuracy is required (like the throttle linkage).
This high quality ball link offers smooth, secure operation with less slop.
You'd want to use this on any control surface where accuracy is required (like
the throttle linkage).
*
Includes: 1- swivel ball link (Black plastic, self-threading for 2mm rod, 1"
in overall length) with a burnished brass ball pre-installed with
a 2mm hole in it
1- 2x12mm socket cap screw
1- brass spacer
1- 2mm steel nut
*
Requires: 2mm threaded pushrod
1.5mm allen wrench for tightening screw (BONR1105)
Our Price: $3.03
Dubro Swivel Ball Link 2-56/4-40 w/Hardware Black
Description:
This high quality ball link offers smooth, secure operation with less slop.
You'd want to use this on any control surface where accuracy is required (like the throttle linkage).
This high quality ball link offers smooth, secure operation with less slop.
You'd want to use this on any control surface where accuracy is required
Includes: 1- swivel ball link (Black plastic, self-threading for 4-40 rod, 1"
in overall length) with a burnished brass ball pre-installed with
a #2 hole in it
1- 2-56 x 1/2" socket cap screw
1- brass spacer
1- 2-56 steel nut
Requires: 4-40 threaded pushrod
5/64" allen wrench for tightening screw
Our Price: $3.03
SIG NYLON AILERON CONNECTORS
Description:
These self-threading aileron connectors are molded out of super tough nylon. 4-40 threads. Package of 4.
Our Price: $1.24
Dubro Heavy-Duty E/Z Connector 2-56
Description:
This is an Heavy Duty EZ Connector set by Dubro. EZ Connectors link a pushrod to a servo arm allowing it to pivot for
less bind in control surfaces.
FEATURES
Works on 2-56 and smaller wire (.078")
Permanent or snap on mounting push nuts both included.
INCLUDES
Two aluminum EZ Connectors
Two plastic snap nuts.
Two metal snap nuts.
Two 2.5x3.5mm hex head screws.
REQUIREMENTS
Assembly onto linkages
SPECIFICATIONS
Length of aluminum: 5.6mm (.223")
Diameter of aluminum connector: 5.5mm (.217")
Our Price: $3.10
- Page 4 of 7 | 80 Total Products
