SERVO EXTENSIONS/ SWITCHES/ ACCESSORIES : OTHER
- Page 1 of 2 | 21 Total Products
SERVO REVERSER Y ADAPTER UNIVERSAL
Description:
User friendly UNIVERSAL design, Works with al brand radios and servos.
4.8V / 6.0V compatible
Very stable circuitry
Easy alignment
The Miracle Y plugs in between the receiver and servos to reverse the direction of one servo.
It is useful where the radio system does not allow reversing of a particular servo, like flap, or dual elevator installations.
The potentiometer is provided to adjust the center position of the reversed servo.
Be sure to avoid over travel of the servo by moving the center excessively.
The reverser is set for 1.5 millisecond center pulse systems, which are common today.
The longer lead is reversed and the other lead passes the signal through.
]This allows installation as a reversing Y harness.
This reverser provides signal amplification and filtering.
It is made to work with all radio systems.
Be sure to check for proper operation before flying your model aircraft.
While every effort is made to make this unit compatible with all systems occasional compatibility issues with certain combinations of equipment are always possible.
MPI can’t be responsible for systems that are not ground tested prior to flight.
Mount the unit away from fuel and water.
Isolate it from vibration by wrapping it in foam.
Our Price: $19.50
SERVO EXTENSION 24 INCH HEAVY DUTY UNIVERSAL
Description:
This is the MPI Universal 24" 20 AWG Twisted Servo Extension.
A Universal(20AWG) Twisted Wire
Gold plated terminals improve conductivity and prevent oxidation for longer lifespan
Heavy 20awg-gauge wire handles higher current loads
Great for High Voltage Servos
Twisted wire design cuts down on electro-magnetic (EMI) which can cause radio interference
Our Price: $8.00
EMS FEMALE CONNECTOR UNASSEMBLED (5) FUTABA
Description:
LIMITED QUANTITY
DISCONTINUED ITEM WILL NO LONGER BE AVAILABLE
This is a package of 5 Unassembled Female Futaba J Style Servo Connectors from Electronic Model Systems.
FEATURES: Plastic connector housing, black in color
Gold-Plated pins for high conductivity and reliability
Fits wire sizes from 20 to 30 AWG
Simple assembly
INCLUDES: 5 Plastic Futaba J-Style Servo Connector Housings
15 Gold-Plated Receptacles
REQUIRES: Assembly following the included assembly sheet
Our Price: $6.50
EMS FEMALE CONNECTOR UNASSEMBLED (10) FUTABA
Description:
DISCONTINUED LIMITED QUANTITY AVAILABLE
This is the Futaba J Unassembled Female Connector Set from EMS.
FEATURES:
Allows modeler to make their own servo leads and extensions
Gold plated pins for high conductivity and reliability fit wire sizes from 20 - 30 AWG
INCLUDES:
Ten Futaba J female connectors
Thirty pins and instruction sheet
REQUIRES: Crimping pins over wire and inserting into connector
Our Price: $12.50
RAGE RC 3 INCH SERVO EXTENTION 22AWG
Description:
Racer's Edge servo extensions feature a JR-style male plug and FUT-style female plug for a truly universal solution. Precision manufactured with gold-plated pins and robust yet flexible 22-gauge wire.
Our Price: $2.99

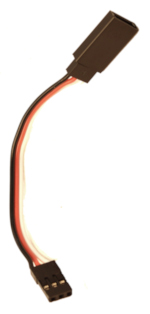

Servo Extension 6 (150mm) Futaba J
Description:
This is the Tactic 6" Servo Extension with Futaba J Connectors.
FEATURES: Installs between servo and receiver for long extension runs in large
aircraft
INCLUDES: Tactic 6" Servo Extension with Futaba J Male and Female Connectors
SPECS: Length: 6" (152mm)
Wire Color Codes-
Black: negative
Red: positive
White: signal (polarity tab is on the signal side)
Our Price: $3.99
