ELECTRICAL : ESC-ELECTRONIC SPEED CONTROLS


  • Page 1 of 2  |  17 Total Products





Part#: EFLA1010
ELECTRONIC SPEED CONTROL 10 AMP PRO BRUSHLESS
Description:

10-Amp Pro Brushless ESC

Key Features
Up to 10-amp continuous current with proper air flow
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low-voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
Programmable throttle input range (1.1ms–1.9ms or Auto Select)
Auto motor shutdown if signal is lost or there is interference
Programmable timing—2 user-selectable ranges for use with a large variety of brushless motors
Pre-wired connectors—JST on battery input and 2mm female gold bullets on motor output leads
Soft start

More Info
Our Price: $27.99
Qty Desired:     Out of Stock




Part#: SPMXAE1015
SPEKTRUM Avian 15 Amp Brushless Smart ESC, 3S-4S
Description:

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Please note - The Spektrum Avian Smart 15A ESC does not include the Smart Battery Data Wire and does not provide Motor Current. Battery telemetry data will not be transmitted (Battery Temp, Battery Cycles, Battery Cell Balance). Only the following ESC telemetry will be provided; Input Voltage, Throttle Input and Output %, ESC FET Temp and Motor RPM.


Our Price: $34.99
Qty Desired:   Add to Cart




Part#: CSE1001130

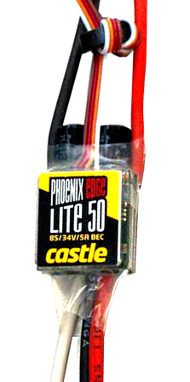

Phoenix Edge Lite 50-Amp 34V ESC
Description:

 Continuous Maximum Current: 50A
Input Voltage: 2S-8S LiPo
Input Connector Types: Bare Wire
Output Connector Types: Bare Wire
Length: 2.0 in (50.8mm)
Width: 1.0 in (25.4mm)
Height: 0.9 in (23.2mm)
Weight: 2.0 oz (56 g) with wires
BEC Voltage: 5.0-8.4V, user selectable, Maximum 5 amp.


Our Price: $84.95
Qty Desired:     Out of Stock




Part#: CSE1001220

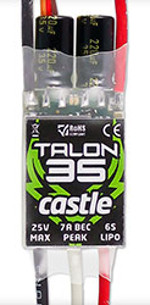

Castle Creation Talon 35 Heli ESC
Description:

This "mighty mini" can take on the most extreme maneuvers while keeping it’s cool. Talon 35 is intended for use in 450 Heli setups running up to 6S or .10 to .20 fixed wing applications pulling up to 35 amps and boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle’s industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter (coupon included). The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.

Input Voltage Range: MIN: 2S LiPo MAX: 6S LiPo
Max Continuous Amperage at full throttle: 35 amps*
Max Voltage: N/A
BEC Voltage: 5.5 volts
BEC Output: 7 amp peak** 5 amp continuous
(always check servo draw prior to first flight)

Size:
Width: 0.88" (22.4mm) Length: 1.93" (49mm) Depth: 0.33" (8.4mm)
Weight: 0.98 oz. (27.8g) with wires  0.42 oz (12g) without wires


Our Price: $54.95
Qty Desired:   Add to Cart




Part#: CSE1000970

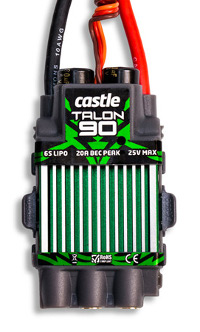

Castle Creations Talon 90 Heli ESC
Description:

Castle’s Talon 90 ESC sports a BEC designed for today’s servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

Talon 90 is ideal for helicopters drawing 2,000 watts on 6S. It’s a great fit for extreme 500 and 550 class helis and sport (6S) 600 setups. Of course, Talon offers Castle's industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI running on a Windows PC!

The Talon 90 is also perfect for fixed-wing aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.

More Info
Our Price: $84.99
Qty Desired:     Out of Stock




Part#: CSEM1200
Phoenix Edge Lite 75 Amp 34V Brushless Electronic Speed Cont
Description:

 This is the Phoenix Edge Lite 75 Amp 34V Brushless Electronic Speed Control
                           from Castle Creations.

More Info
Our Price: $102.00
Qty Desired:     Out of Stock




Part#: SPMXCA200
SPECTRUM AVIAN Smart ESC Programming Update Box
Description:

Set, review, adjust and save the operating parameters of your Avian and Firma electronic speed controls using the Spektrum Smart ESC Programmer. When connected to a PC using the included USB cable, the programmer will update Smart ESC firmware and can adjust parameters through the Spektrum SmartLink app. You can also use it to check the balance of your LiPo battery cells.

Review, adjust and save Spektrum Smart ESC parameters
Connect (via USB) to a PC to update Smart ESC firmware and adjust parameters via Spektrum SmartLink PC app
Check a LiPo battery's cell balance


Our Price: $29.99
Qty Desired:   Add to Cart




Part#: CSEM3200
TALON 25 QAUD PACK
Description:

Clearance Sale

Four 25 amp Multi-Rotor electronic speed controls with optimized firmware designed for smaller Quadcopter and other Multi-Rotor platforms pulling up to 25 amps, and running up to 6S LiPo battery pack. Refresh rates up to 490 Hz for optimum stability and maneuverability.
Programmable using Castle Link USB adapter (not included.)

 Retail $135.99

Our Regular price was $115.59

Clearance Price: $99.99 !!

More Info
Our Price: $99.99
Qty Desired:   Add to Cart




Part#: CSE50866
MAMBA 25 RC CAR SPEED CONTROL
Description:

Features of the Mamba- 25
       Extremely Low Resistance (.0022 ohms per phase)
       Up to 25 Amps continuous current, 50 amps surge
       Four to twelve cells, or 2 to 3 Lithium Polymer cells
       Proportional brake
       BEC (1. 5A) provides power to receiver and servo - eliminates separate receiver battery
       User Programmable Features:
       Brake/Reverse Type
       Reverse Throttle Amount/Brake Strength
       Low voltage cutoff (LiPo safe)
      Timing Advance
      Starting Power
      Safe ìpower onî arming program ensures motor will not accidentally turn on
      Auto shut down when signal is lost or radio interference becomes severe




Our Price: $59.99
Qty Desired:   Add to Cart

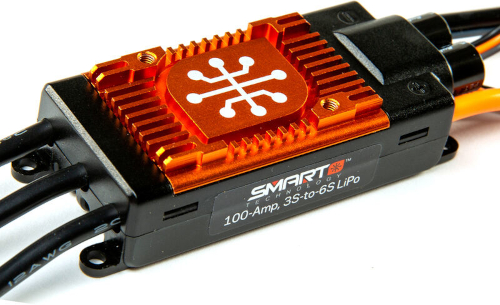

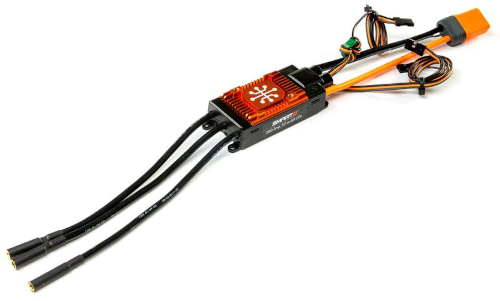

Part#: SPMXAE1100
SPEKTRUM Avian 100 Amp Brushless Smart ESC, 3S-6S
Description:

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

More Info
Our Price: $99.99
Qty Desired:   Add to Cart




Part#: SPMXAE1060
SPEKTRUM Avian 60 Amp Brushless Smart ESC, 3S-6S
Description:

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!


Our Price: $69.99
Qty Desired:   Add to Cart




Part#: CSE1001000
Phoenix Edge 100 AMP ESC, 8S / 33.6V with 5 AMP BEC
Description:

PHOENIX Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included), or the new B-LINK Bluetooth Adapter and Castle Link for iOS, Phoenix Edge offers unparalleled versatility.

Telemetry Capable : Yes
ESC Current Rating : 100
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Our Price: $116.99
Qty Desired:   Add to Cart

  • Page 1 of 2  |  17 Total Products
