Checks the state of the following battery packs;
2-7 cell LiFe, LiPo and Li-Ion packs with JST-XH connectors 4-7 cell NiCd and NiMH packs
Battery pack total voltage display and remaining capacity are displayed on a bar graph and in percent
Voltage of each cell of a lithium battery pack can also be displayed
Operates on the power supplied from the connected battery
One year limited warranty through Hobby Services beginning at date of purchase
SPECIFICATIONS
Voltage display error: ±1.5%
Dimensions: 3.3 x 2.5 x 0.6" (85 x 63 x 15mm) excluding projecting parts
Weight: 1.8oz (52.6g)
Display range;
Total voltage: (Ni type) 4.0~17V, (Li type) 5~34V
Cell voltage: (Li type) 1.1~4.9V
Operating temperature: -10~+45°C
Storage temperature: -20~+60°C
COMMENTS
The BR-3000 Battery Checker can only be used with the battery packs listed above. It cannot handle batteries of other cell sizes and types. The checker display is based on voltage. Since the voltage changes with the individual battery and the ambient temperature, use the remaining capacity display as a criteria only.
The Spektrum XBC100 Smart Battery Checker is a must have tool for any pilot or drivers pit box. More than a battery checker, it features a built-in cell balancer, integrated servo tester and driver, and Spektrum Smart battery connectivity.
When used with a Spektrum Smart battery, you will be able to see and adjust many of the settings only available with a Spektrum Smart charger. This includes one connection for balance and battery level checking, and providing records like number of cycles, internal battery temperature and exception reports. You can even adjust Smart battery settings right from the XBC100.
The XBC100 also features a Qualcomm 3.0 USB charge port, giving you an easy way to keep your mobile device and Spektrum Smart Transmitters charged when USB power ports are scarce. Better yet, the XBC100 gives you the ability to better setup and test your models with the built in servo tester! Center and test your servo endpoints easily with the integrated PWM output port.
Finally, all of this is displayed on a full color IPS LCD screen that is designed to be easy to read in direct sunlight and is accessed via a user friendly touch interface.
Battery checker with built in cell balancing
Advanced Servo testing feature helps with model setup
Spektrum Smart battery technology allows users to take advantage of Smart Battery features
Easy to read full color display
Qualcomm 3.0 compatible USB power port with Quick Charge for compatible Android and IOS devices (up to 12v and 2 amps)
Update port for easy access to updates and new features

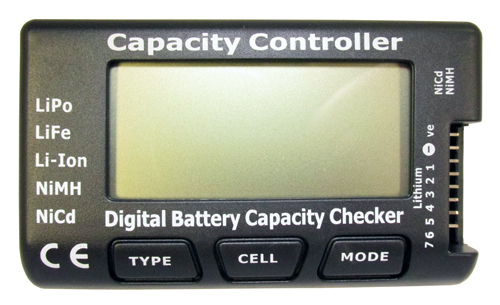

The Cell Master-7 battery capacity checker is a precision unit that will tell you the capacity of your LiPo and NiMH/NiCD packs. It also checks the voltage of your battery packs without the need for a charger.
Digital voltage tester for batteries with a multi-conductor balance lead
Checks 2 - 6 cells
Works off the voltage from the battery under test so no on board batteries to replace
Compact 2" x 1" x 3/8" size is easy to carry to the field
Budget friendly price
