This is a 5/32" Shock Absorbing Steerable Nose Gear.
FEATURES
Steel construction
INCLUDES
One 5/32" nose gear wire 10-3/4" long
REQUIREMENTS
Installation.
COMMENTS
Wire is coiled 4 times at approximatly 3-7/8" from top.

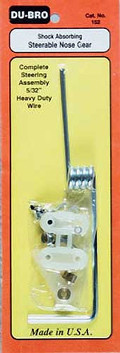

This is a Complete Steering Assembly w/ 5/32" Heavy Duty Wire.
This is a Shock Absorbing Steerable Nose Gear.
FEATURES
Nylon, Brass, & Steel construction
INCLUDES
One 5/32" nose gear wire (see DUBQ1310 for specs)
One nylon steering arm (see DUBQ1335 for specs)
Two nylon gear blocks w/included hdwr(see DUBQ1325 for specs & info)
REQUIREMENTS
Installation.
COMMENTS
This includes all the hardware to install it onto the plane.

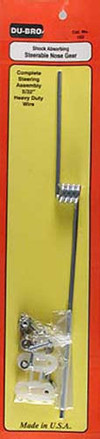

This is a Complete Steering Assembly w/ 5/32" Heavy Duty Wire.
FEATURES
Nylon, Brass, & Steel construction
INCLUDES
One 5/32" bent nose gear wire 6-1/2" long 5/32" diameter.
One nylon steering arm
Two nylon gear blocks w/included hardware
COMMENTS
This includes all the hardware to install it onto the plane.
Nose Gear wire is coiled 4 times at approximatly 2-3/4" from top
CARBON FIBER
CARBON FIBER
Great Planes Dural Landing Gear is Hardened to Help Absorb the Abuse of Rough Fields and Landings. The L-8 size fits ¼-Scale Planes (.90-1.5). 6061-T6 Aluminum Construction
SPECS:
5-7/8" (Top plate of mount width), 16" (Total length),
5-1/2" top plate length
4-3/4" (Top of mount down to wheel mounting hole),
1/8" (Mount thickness).
Overall width (distance between wheels): 15 5/8"
Distance on mount plate, front to back: 5.5"

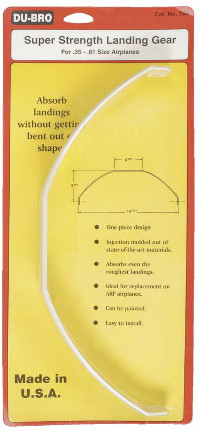

This is DU-BRO Landing Gear.
Works for Airplanes, .35-.61 size.
FEATURES
One-piece design
Injection molded out of state-of-the-art material.
Absorbs even the roughest landings.
Ideal for replacement on ARF planes.
Landing gear can be painted.
Easy to install
INCLUDES
One Piece Landing Gear.
REQUIREMENTS
Mounting hardware
SPECIFICATIONS
Base: 3-5/8"
Landing Length: 4 1/2"
Width: 14"
This is a Micro Tail Wheel Bracket for use on small Airplanes.
Black plastic and steel wire construction.
NCLUDES:
Two wheel bracket halves.
One tail wheel wire.
SPECIFICATIONS:
Length of wire: 39.6mm (1.58")
Diameter of wire: 1.05mm (.041")
This would be suitable size for most Park Flyer or Guillows scale kits.
Constructed of plastic, White in color
Designed for profile mounting up to 5/8" (16mm) wide, also foamiesand original designs
INCLUDES
Two sections of Du-Bro Micro Profile Landing Gear with mounting
hardware with wheel collars and drilling template for proper
fuselage placement
REQUIREMENTS
Attaching to fuselage and wheels of modeler's choice
SPECIFICATIONS
Length: 7.8" (199mm)
Width: 1.7" (44mm) at fuselage mounting area
Length: 1.2" (31.5mm) at fuselage mounting area
They're Back! But Better! The CENTRAL HOBBIES 5/32" diameter Fixed Gear Axles are back. With the same specifications as the original only made from Titanium. Stronger and just as light! Two grooves to allow for different wheel widths up to 3/4 inch (19mm.) The inner grove is for wheels up to .65 inches (16mm.) At the attachment end is a 3/8 inch hex for a box end wrench. The mounting screw is 4-40 X 1/2 inch Stainless Steel with a matching SS washer and uses a 1/16 inch allen wrench.
Axles Diameter: 5/32"
Weight: Approximately 0.22oz (94gr) per pair
Includes:
2 Titanium Axles (5/32" Diameter)
4 Stainless Steel washers (approximately .025 inch thick)
2 4-40 X 1/2 inch Stainless Steel screws with SS washers
4 E-Clips (2 for Spares!)
