Orders Only: 1-800-723-5937 Information: 1-406-259-9004
Hours: Mon - Sat 10-6 MST
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.
The FZ115s Sport engine is the direct bolt in replacement for the older YS 91AC, FZ91, and FZ110 series of engines. It has the same external dimensions as the 91's and 110's. Thanks to the YS Supercharging system, it produces more power than any other manufacturer's 120 size engines but is much lighter and more compact. The Supercharging system in conjunction with the Air Chamber on the rear of the cylinder and the double throttle valve carburator allows a larger charge of fuel and air mixture to enter the intake valve for more power. The Fuel Injection System along with the presurized fuel system gives superior throttle responce and makes the engine unaffected by tank position / location or attitude of the model.
The FZ115s is great for planes that where originally designed for .60 size 2 cycle glow engines but with a significant boost in power!
Displacement: 18.73cc / 1.15 c.i.
Bore: 30.4mm
Stroke: 25.8mm
Weight: 730g
Practical RPM: 2000 - 13000
Recommended RPM: 7000 - 11000
Recommended Props: 14X11-12, 15X10-11, 16X8
Shaft: 8mm x 1.0 x 38mm
Recommended glow plug: OS Type F
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.
1.75 cu in Sport Glow Engine with Pressurized Fuel System
Glow Plug Not Included
O.S. Type F recommended
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal. Sorry no exceptions.
The DZ200S is an updated version of the DZ200 with a new crankshaft and piston.
2.0 cu.in. 4-Stroke Glow fuel engine
Uses 4-Stroke Glow plug
Direct fuel Injection.
Bore: 36.5mm
Stroke: 31.8mm
Displacement: 33.3cc/ 2.0Cu.In
Practical RRM: 1000 - 9000
Recommended Glow Plug: O.S. Type F
Recommended fuel is 10% to 25% Nitromethane 2 stroke Glow Fuel. Most modern 2 stroke glow fuels with a synthetic / castor oil mix will work fine .
Recommended prop sizes: APC PNC series 21x10.5 - 21.5x10.5 but any prop that will run between 6000 and 8000 rpm maximum will work too.
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.
Displacement 18.73cc
Bore 30.4mm
Stroke 25.8mm
Weight 730g
This is the updated Warbird Race Version 2 edition of the YS FZ115. It has a dished piston for use with high nitro fuels and a crankshaft seal to increase the supercharging affect. It is also a great sport/aerobatic engine on 15 - 20% nitro fuels. It does not come with a muffler or a glow plug. The FZ115ws comes with a 75 degree open stainless steel exhaust pipe (YSE0895), no muffler. We recommend the NMP Aluminum Racing Stack for the exhaust for racing, or the FZ115 standard muffler (YSE4335 muffler set) for sport flying and a OS Type F 4-Stroke glow plug.
Recommend products:
O.S. Type F Glow Plug recommended
Props
For Racing use:
Brake In- APC 14x11
40% and up- APC 13.5x13.5, or APC 14x13
30% - APC 14x12, or APC 14x13
For sport and aerobactis
APC 15 X 10 - 16 X 8
(Glow Plug Not Included)
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.
*.80 cu. in 4 cycle engine for glow full
*Proven pressurized fuel system
*Easy operation
Glow Plug Not Included
O.S. Type F recommended
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.
YS Airplane 2 Stroke
Limited Edition
Displacement:9.9 cc / .61 c.i.
Bore:24.0 mm
Stroke:22.0 mm
Weight: 545g
Practical RPM: 1,800 to 18,000
Recommended Propellers: APC 11 X 9, 12 X 8 (20/20 Blend Fuel)
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal. Sorry no exceptions.
The DZ200Scdi is the CDI (Spark Plug) version of the DZ200s.
2.0 cu.in. 4-Stroke Glow fuel engine
CDI Ignition System
Direct fuel Injection.
Bore: 36.5mm
Stroke: 31.8mm
Displacement: 33.3cc/ 2.0Cu.In
Recommended Max RPM 6000-7000
Recommended fuel is 5% to 25% Nitromethane with 8% to 20% oil content Glow Fuel. Most modern 2 stroke glow fuels with a synthetic / castor oil mix will work fine .
Recommended prop sizes: APC PNC series 21x10.5 - 21.5x10.5 but any prop that will run between 6000 and 7000 rpm maximum will work too.
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal. Sorry no exceptions.
The DZ200Scdi-M is the same engine as the DZ200Scdi with the YS MOUNT 3 soft mount installed at the factory.
2.0 cu.in. 4-Stroke Glow fuel engine
CDI Ignition System
Direct fuel Injection.
Preinstalled YS soft engine mount
Bore: 36.5mm
Stroke: 31.8mm
Displacement: 33.3cc/ 2.0Cu.In
Recommended Max RPM 6000-7000
Recommended fuel is 5% to 25% Nitromethane with 8% to 20% oil content Glow Fuel. Most modern 2 stroke glow fuels with a synthetic / castor oil mix will work fine .
Recommended prop sizes: APC PNC series 21x10.5 - 21.5x10.5 but any prop that will run between 6000 and 7000 rpm maximum will work too.
All Engines shipped will be charged Actual cost of shipping.
All Engines will be shipped Via Fed Ex with Signature Required.
All engines must be paid by Paypal.
Sorry no exceptions.

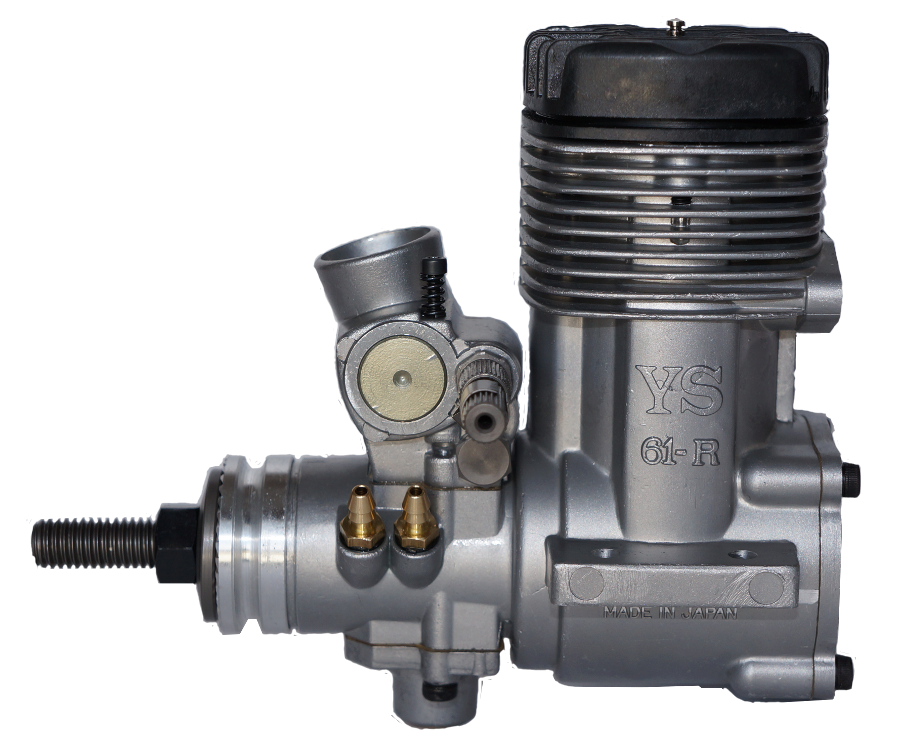

YS Airplane 2 Stroke Side Exhaust
Limited Edition
Designed for the Ballistic type Pattern models
Proven regulated pressurized fuel system
The most powerful .61 glow engine from any brand
Displacement:9.9 cc / .61 c.i.
Bore:24.0 mm
Stroke:22.0 mm
Weight: 545g
Practical RPM: 1,800 to 18,000
Recommended Glow Plug : OS #8
Recommended Propellers: APC 11 X 9, 12 X 8 (20/20 Blend Fuel)
YS 61R Classic Manual (61S manual not yet available)
