PROPELLERS : APC CARBON FIBER PATTERN

Manufacturing Process Used To Develop APC Propellers

Processing

Mold halves used in injection molding machines are manufactured using computer controlled vertical milling machines which have automatic tool calibration and tool change features. Each mold half is cut with a series of cutting tools using progressively smaller tool radii and finer mesh spacing. Once started, the operations required to cut a mold half are completely automatic. Typically hand polishing of the mold cavity is not required after the milling operations are complete.

During an injection molding production run, fine adjustments may be made (if necessary) to control propeller balance. Molding machine parameters, once set, are stored electronically for subsequent use to assure consistency between propeller batches.

Larger propellers are retrieved from the injection molder with a robotic machine. The only postoperative manufacturing requirement is drilling of the prop shaft hole which uses a guide hole provided by a pin resident within the mold.

Materials

The molding compound used in APC propellers is primarily a long glass fiber composite. The majority of APC propellers are made with the fiberglass composite due to its superior mechanical properties. A select number of APC propellers are made from a long carbon fiber composite, these are typically special application propellers. The carbon fiber propellers have the letter C in the part number. Due to the increased popularity of quad-copter racing, some smaller APC propellers are now made with a Polycarbonate material. These DURABLE propellers are specifically designed for quad racing and freestyle. They are incredibly resistant to breakage and have the letters BD at the beginning of the part number.

The long glass and carbon fiber composites are manufactured using a pultrusion process. This method causes the "fibers" to be oriented axially in 1/2 inch long pellets. This long fiber compound allows a higher fiber (60% fiberglass) to resin (nylon binder) density than short or chopped fiber compounds. Reground material is never used for APC propellers. Viscous (skinning) effects during injection molding cause these long fibers to remain dominantly oriented in the propeller span-wise axis. This provides substantially higher strength and stiffness compared to more conventional processes which use short or chopped fibers.

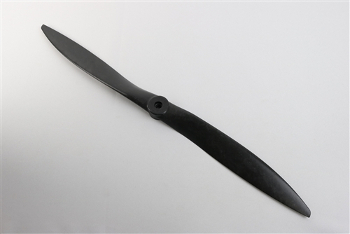

Part#: APC205105C
LP205105PNC 20.5 X 10.5 C/F PROP
Description:

Carbon Fiber Pattern Propellor
This propeller has progressive pitch (10 at the root and 11 at the tip)
Material: 40% Carbon / 60% Nylon

 Hub Diameter: 1.35 in.
Hub Thickness: 0.80 in.
Shaft Diameter: 5/16 in.
Product Weight: 4.55 oz.
Color: BLACK



Our Price: $60.75

Qty Desired:



Part#: APC210105C
LP210105PNC 21 X 10.5 C/F PROP
Description:

Carbon Fiber Pattern Propellor
Material: 40% Carbon / 60% Nylon

Hub Diameter: 1.35 in.
Hub Thickness: 0.79 in.
Shaft Diameter: 5/16 in.
Product Weight: 4.24 oz.
Color: BLACK





Our Price: $63.99

Qty Desired:



Part#: APC21010C
LP21010PNC 21 X 10 C/F PROP
Description:

Carbon Fiber Pattern Propellor
Material: 40% Carbon / 60% Nylon

Hub Diameter: 1.35 in.
Hub Thickness: 0.78 in.
Shaft Diameter: 5/16 in.
Product Weight: 4.37 oz.
Color: BLACK







Our Price: $59.25

Qty Desired:     Out of Stock



Part#: APC200105C
LP200105PNC 20 X 10.5 C/F PROP
Description:

Carbon Fiber Pattern Propellor
Material: 40% Carbon / 60% Nylon

Hub Diameter: 1.35 in.
Hub Thickness: 0.80 in.
Shaft Diameter: 5/16 in.
Product Weight: 4.21 oz.
Color: BLACK

Our Price: $60.75

Qty Desired:



Part#: APC20510C
LP20510PNC 20.5 X 10 C/F PROP
Description:

Carbon Fiber Pattern Propellor
Material: 40% Carbon / 60% Nylon

Hub Diameter: 1.35 in.
Hub Thickness: 0.80 in.
Shaft Diameter: 5/16 in.
Product Weight: 4.55 oz.
Color: BLACK





Our Price: $56.25

Qty Desired:



Part#: APC20514EC
LP20514EPNC 20.5 X 14 C/F ELECTRIC PROP
Description:

PATTERN PROPELLER WITH THIN HUB FOR ELECTRIC MOTORS ONLY
Use LPAR06E adapter rings
Includes one set of rings from LPAR06E
Material: 40% Carbon / 60% Nylon

Hub Diameter: 1.25 in.
Hub Thickness: 0.47 in.
Shaft Diameter: 1/4 in.
Product Weight: 2.64 oz.
Color: BLACK

Our Price: $36.75

Qty Desired:



Part#: APC21010WC
LP21010WPNC 21 X 10 WIDE C/F PROP
Description:

Carbon Fiber Pattern Propellor
Material: 40% Carbon / 60% Nylon

Hub Diameter: 1.35 in.
Hub Thickness: 0.80 in.
Shaft Diameter: 5/16 in.
Product Weight: 4.55 oz.
Color: BLACK

Our Price: $59.25

Qty Desired:



Part#: APC215105C
PROP PATTERN 21.5 x 10.5 PNC C/F
Description:

21.5 X 10.5 Carbon Fiber Pattern Prop.

Our Price: $68.99

Qty Desired:
